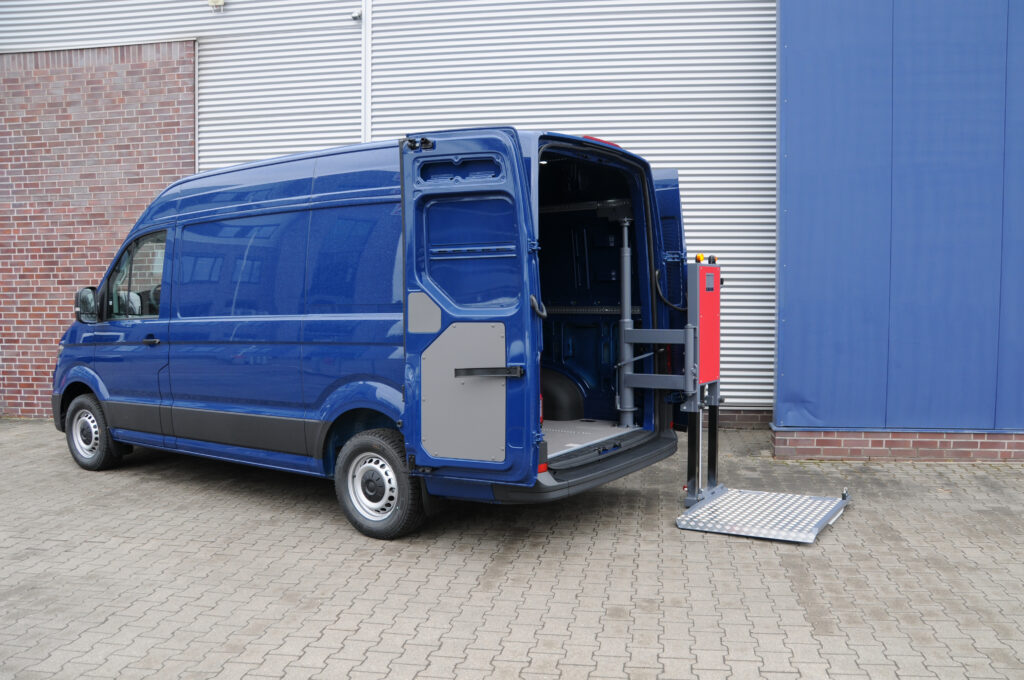

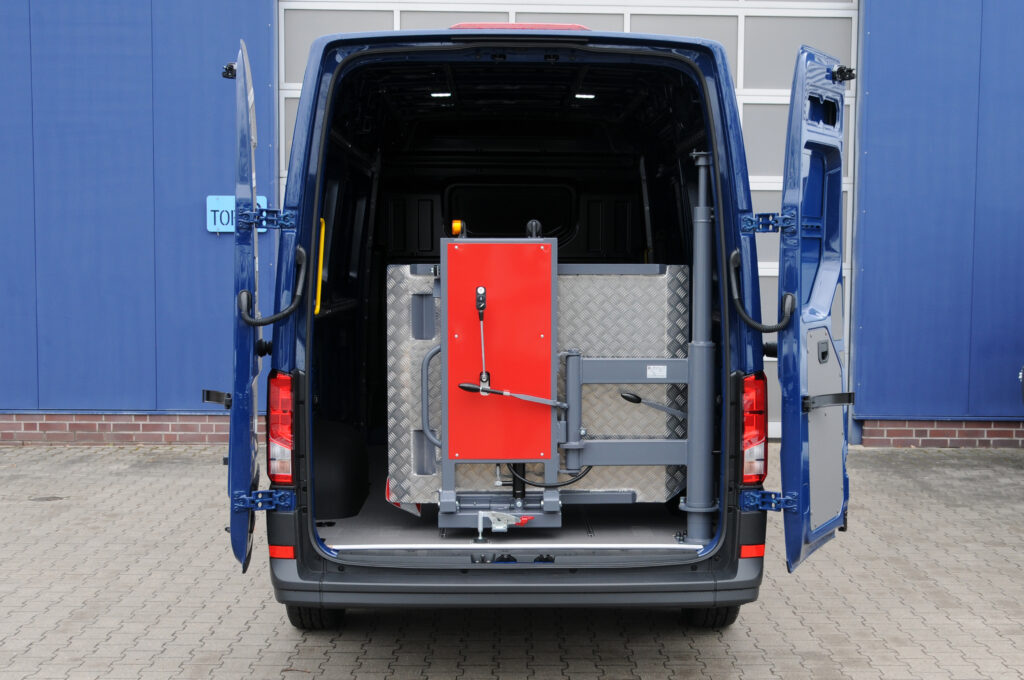

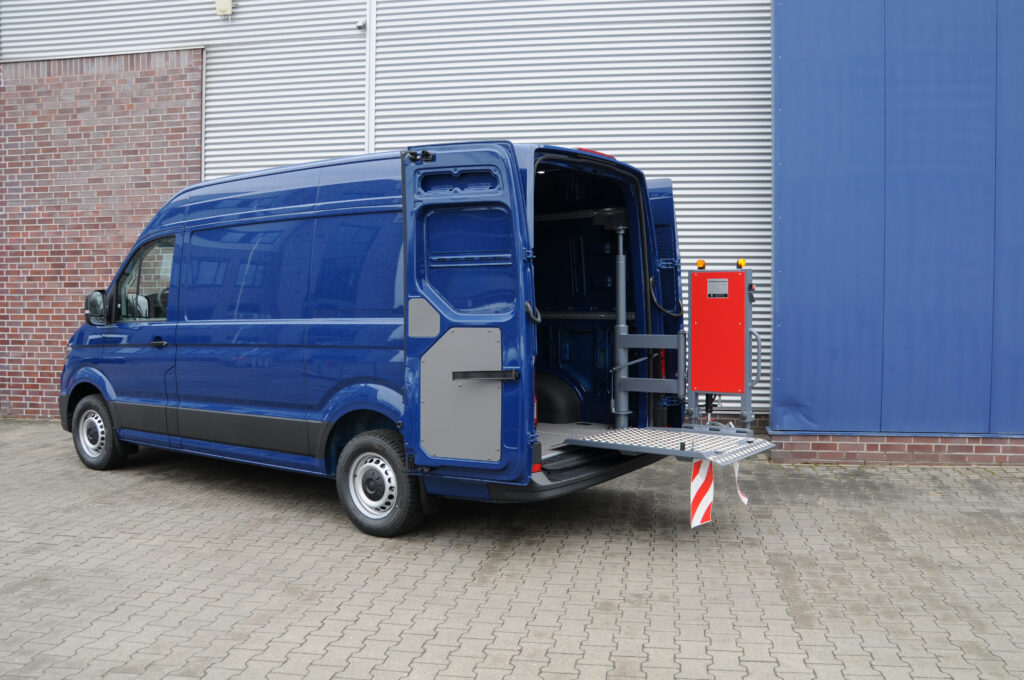

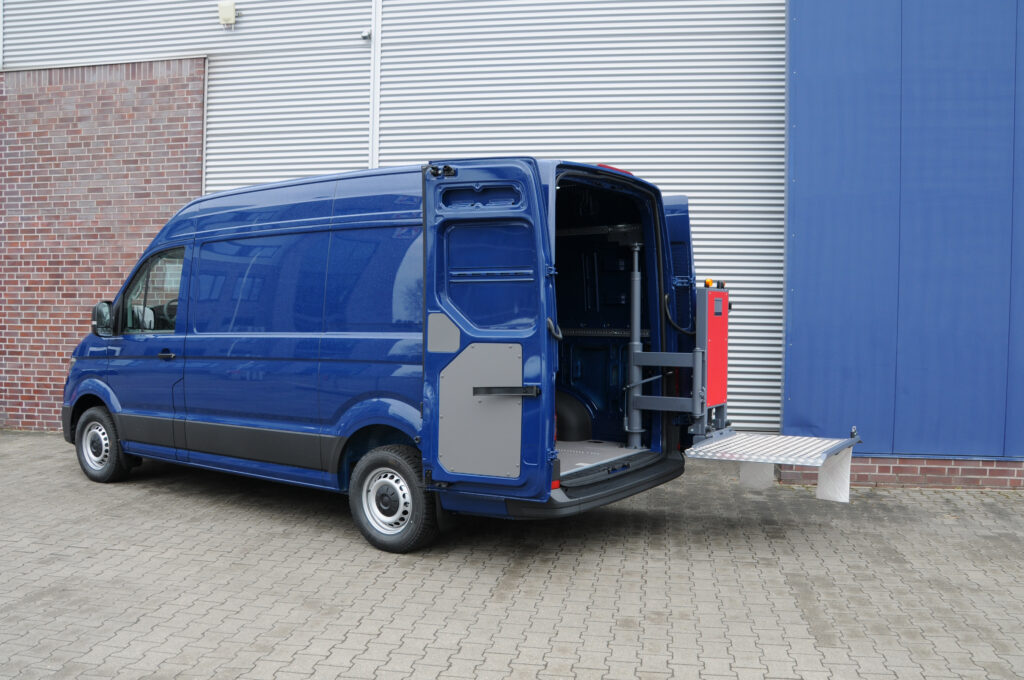

The Cargo Swivel Lift

The Cargo Swivel Lift is ideal for safely and efficiently transporting goods in small vans.
The lift platform is manually folded down and can – depending on the model – be swiveled 2 × 90° or 3 × 90°. The lift offers a load capacity of up to 500 kg and combines user-friendly operation with robust quality.

THE FACTS AT A GLANCE:
✔️ Load capacity: 400–500 kg (depending on the model)
✔️ Suitable for: effortless transport of heavy loads, even in compact vehicles
✔️ Swivel range: available in 2 × 90° and 3 × 90° versions
✔️ Platform: sturdy aluminum platform with 2 standard safety grooves
✔️ Platform dimensions: 840 × 1,200 mm
✔️ Lifting height: 700–1,200 mm (depending on version)
✔️ Drive: electrohydraulic, 12 V / 24 V
✔️ Optional: anti-slip floor, synthetic or wooden interior trim, cargo securing tracks, bars or lashing straps at the side panels
